- Size: 8423*2480*3457mm
- Place of Origin: Zhejiang
- Brand Name: TRUEMAX
- Model Number: TP25M4U
- Weight: 12000.000 kg

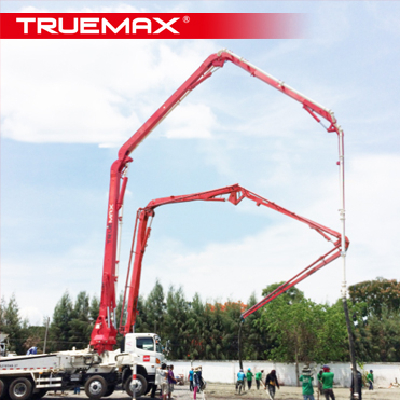

Main Features of Truck Mounted Concrete Pump
Superior Material & Configuration
1.The slewing bearing of boom system is of Rothe Erde (Germany) or similar brand from Europe, which is made of 42CrMo, with higher intensity and longer service life;
2.Most of pump parts and valves are world famous brand, like Rexroth, Hawe, Sunny etc.;
3."X" type outrigger, short body but of good stability;
4.Big size of delivery cylinder ensures good suction and higher pump capacity.
Control system
Wireless remote control, world famous imported electrical element of control cabinet, and Siemens PLC.
Hydraulic system
1. Fully hydraulic reversing control system dramatically reduces impaction and noise, & greatly extends the working life of pump & valve and increases operation stability of the equipment.
2. Integrated valve plate design makes the system more compact and reduce oil leakage possibility; intelligent control system ensures the continuous oil supplies and direct oil delivery into the driving cylinder without lost;
3. Special boom buffering system can reduce the peak point under high pressure mode, the boom shaking is quite limited and the end hose is very stable even if the equipment is under high volume pumping.
4. Special developed concrete pump piston returning technology eases daily maintenance.
Model | unit | TP25M4U |
Max. Vertical Reach | m | 24.7 |
Max. Horizontal Reach | m | 21.3 |
Reach Depth | m | 11.9 |
Unfolding Height | m | 6.1 |
Boom Length | m | 6.4/4.75/4.75/5.4 |
Boom Section Articulation | ° | 88/180/250/180 |
Boom Control Mode | / | Manual. Cable & Radio remote control |
Boom Type | / | M |
Slewing Range | ° | 361° |
Front Outriggers Spread | mm | 4910 |
Rear Outriggers Spread | mm | 5853 |
Legs Opening | / | "X" front+"Slewing Leg" real |
End Hose Length | m | 3 |
Arm Attached Pipeline Diameter | mm | 125 |
Concrete Valve | / | S Valve |
Max. Concrete Output | m3/h | 70-120(Low pressure)/45-80(High pressure) |
Max. Pressure | MPa | 10.3(High pressure)/6.3(Low pressure) |
Hydraulic Strokes | Min-1 | 12-18(High pressure)/18-26(Low pressure) |
Cylinder Bore/Stroke | mm | 230 x (1600-1800) |
Hopper Charge Height | mm | ≤1400 |
Hopper Capacity | m3 | 0.7 |
Concrete Slump | mm | 140-230 |
Max. Aggregate Diameter | mm | 40 |
Hydraulic System Type | / | Open loop |
System Working Pressure | MPa | 32 |
Main Hydraulic Pump Type | / | A11VLP130LR/REXROTH |
Main Hydraulic Oil Tank Capacity | L | 600 |
Hydraulic Oil Cooling | / | Air cooling |
Hydraulic Cylinder Bore/Stroke | mm | 130 x (1600-1800) |
Water Tank Capacity | L | 600 |
Overall Size (L x W x H) | mm | 8423 x 2480 x 3457 |
Total Weight | T | 12 |
