- Size: 6500*2145*2450
- Place of Origin: Zhejiang
- Brand Name: TRUEMAX
- Model Number: SP120.26.286D
- Weight: 9000.000 kg

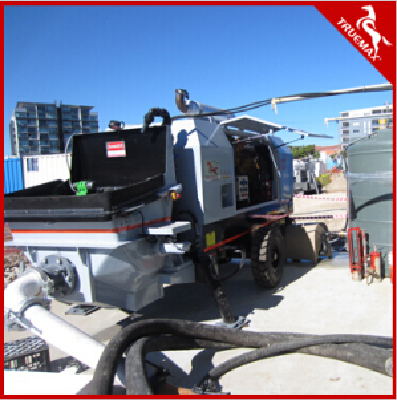

Trailer-mounted Concrete Pump
Main Feature
* The high quality hydraulic components and valves use German REXROTH
* Tungsten steel eyes shape sheet and cutting ring guarantee the long using life.
* Hydraulic support stands make easily positioning.
* The valve for switching high pressure to lower pressure is designed to be easily control, which can adjust the condition of the pump easily in accordance with the requirement of job site. Dismantle the tube is not necessary so that it can avoid the pollution.
* Piston can run back to washing tank, which can easily change and be convenient for maintenance
* Remote control is available as per customers equipment.
| Model | SP80.16.195D | SP105.21.286D | SP120.26.286D | |
| Pump | Max. Theoretical concrete conveying capacity | 87/50m 3 /h | 105/65m 3 /h | 120/63m 3 /h |
| system | Max concrete Pumping Pressure | 16.2/8.7Mpa | 21/13Mpa | 26/13Mpa |
| (High/Low) | ||||
| Main oil pump | Rexroth | |||
| Distributing Valve | "S-Tube" valve | |||
| Main oil cylinder size | 140x1800 mm | 180x2000 mm | 160x2100 mm | |
| (Diameter x stroke) | ||||
| Concrete cylinder size | 200x1800 mm | 200x2100mm | 200x2000 mm | |
| (Diameter x stroke) | ||||
| Concrete hopper (volume & charging) | 780L,1400mm | 700L,1450mm | 700L, 1350mm | |
| Power | Diesel Engine | Deutz | Deutz | Shangchai |
| system | Power (kw) | 195/181/174/161 | 286 | 286 |
| Rated speed (r/min) | 2200 | 2100 | 2100 | |
| Hydraulic oil way form | Open circuit | Close circuit | Open circuit | |
| Others | Cooling way for hydraulic oil | Air cooling | ||
| Overall dimension (mm) | 6600x2160x2800 | 7200x2200x2470 | 6500x2145x2450 | |
| Weight (kg) | 6700 | 8000 | 9000 | |
